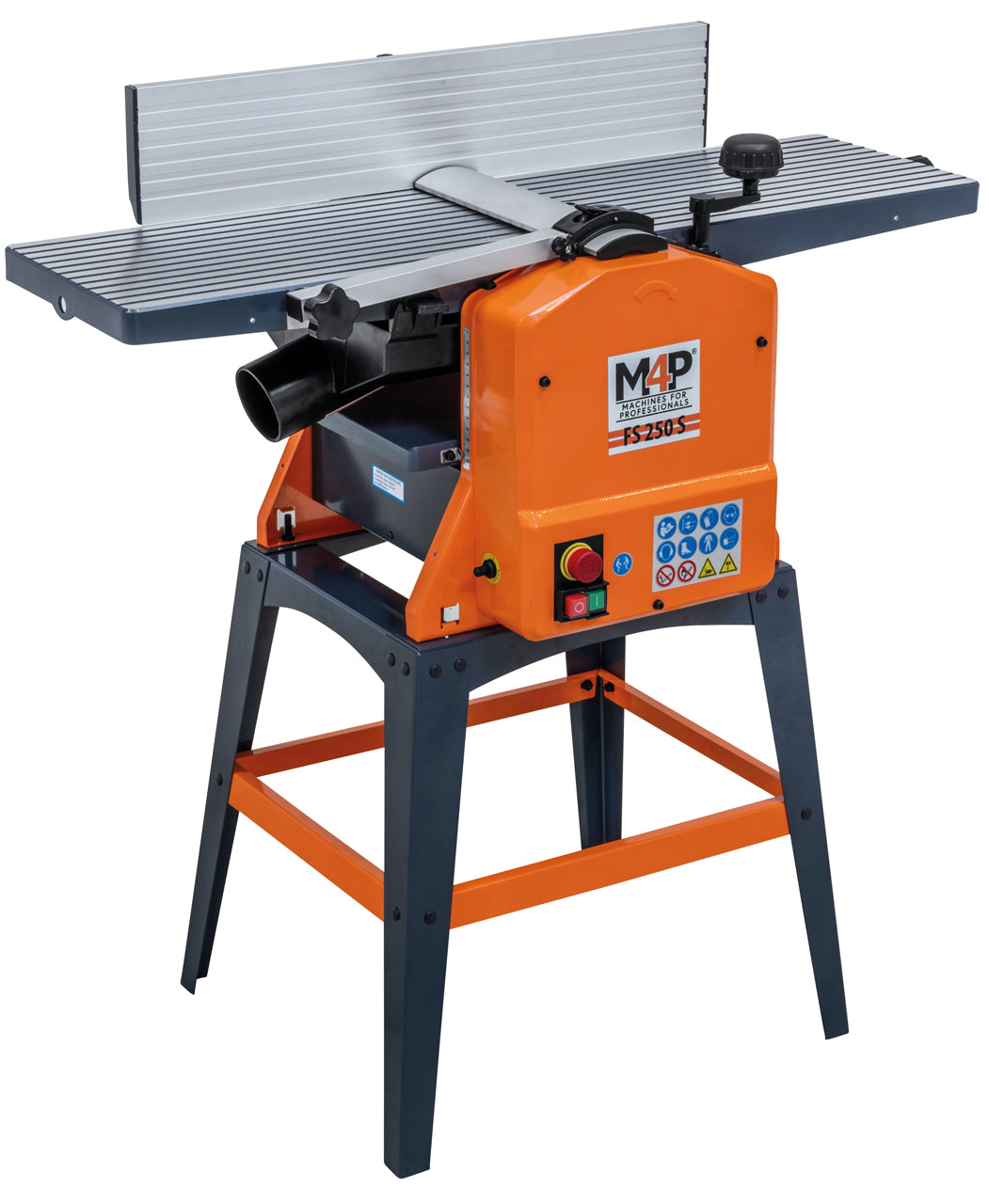

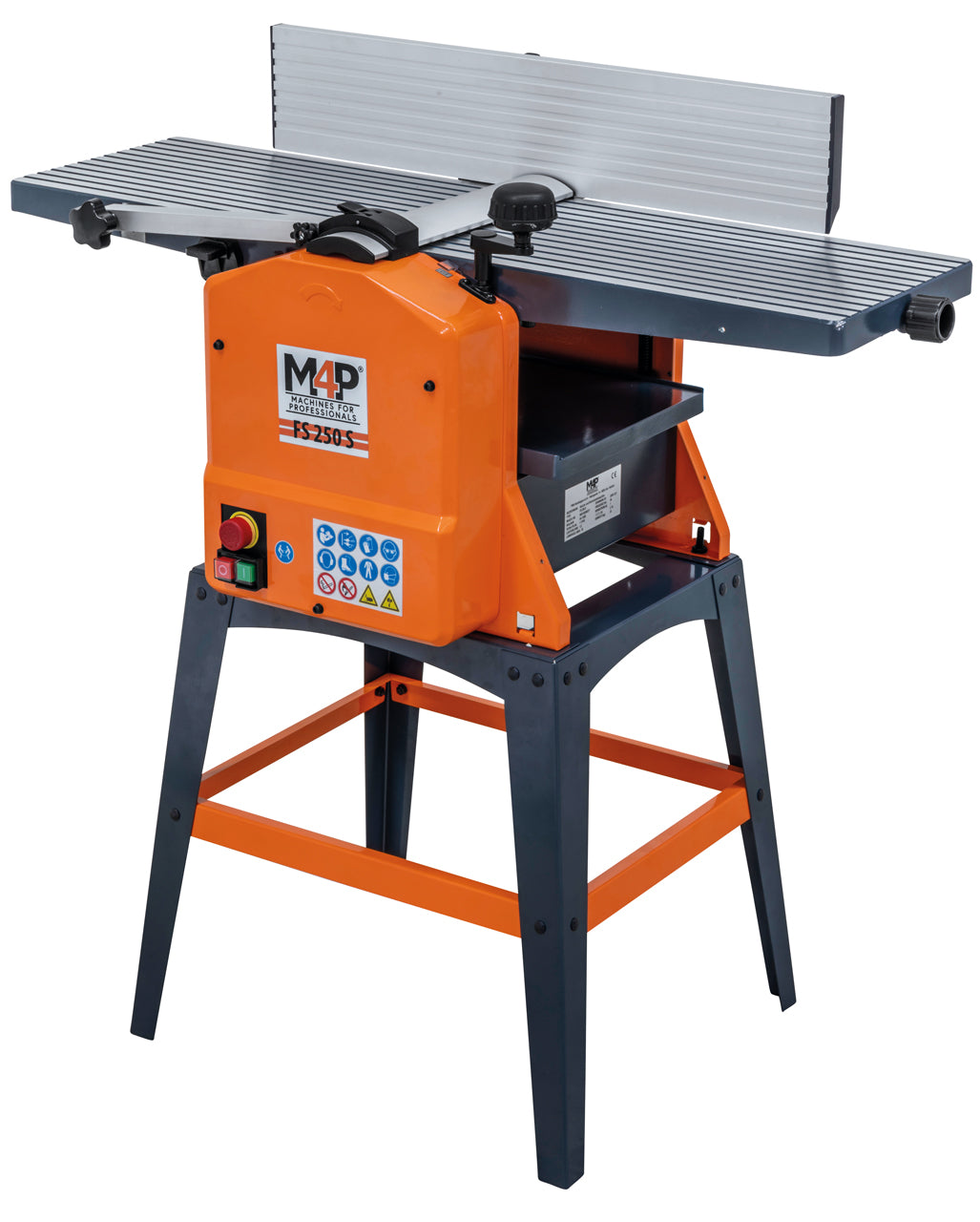

Thanks to its small and compact design, the FS 250 S jointer and planer allows for easy transport and is therefore the ideal machine for mobile use. The spiral cutterhead for reduced noise levels and optimal planing results is another plus of this machine.

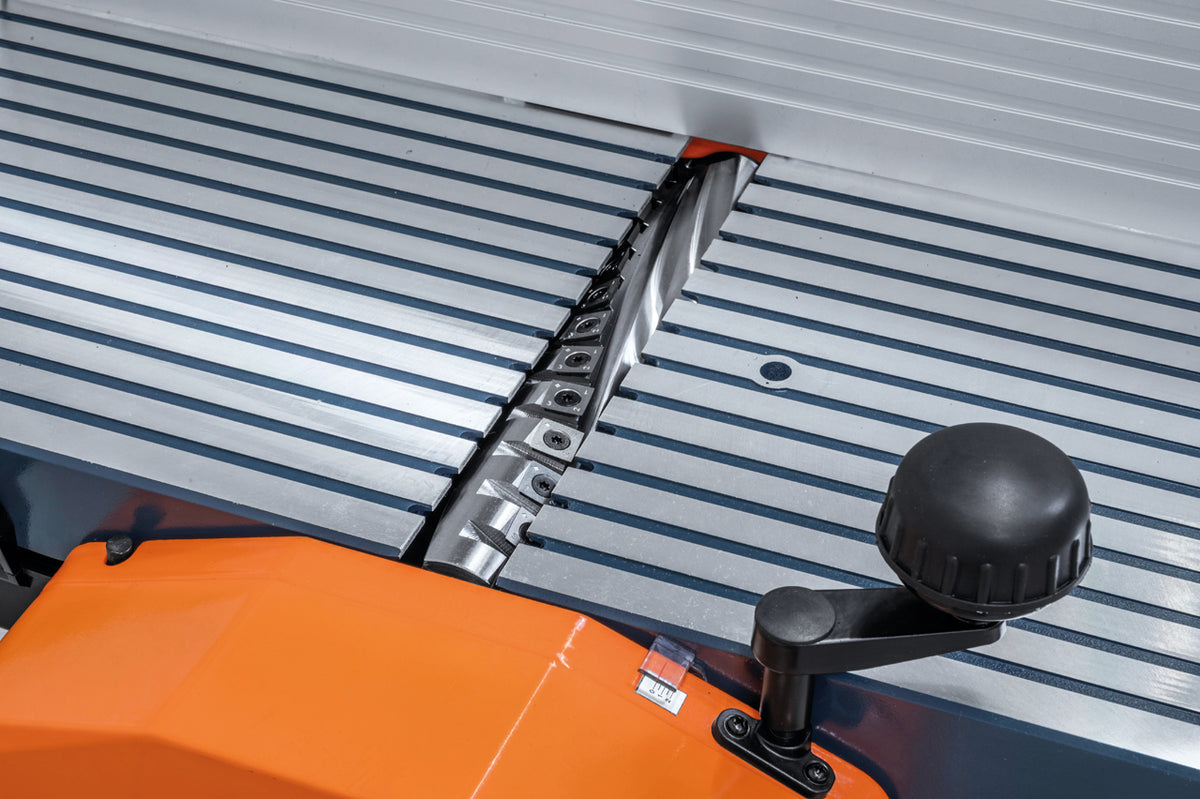

Reduction of noise levels (approx. 50%) due to the standard spiral cutterhead and
up to 20 times longer tool life (due to four-edge carbide inserts)
Advantage of carbide inserts: in case of damage, individual knives can be replaced or rotated
The carbide cutting edges ensure tear-free planing results and optimal surfaces for every type of wood
Cutterhead guard according to CE standard offers maximum safety during operation
Quick and easy adjustment of the desired depth of cut
Precisely machined aluminum jointer tables for accurate work results

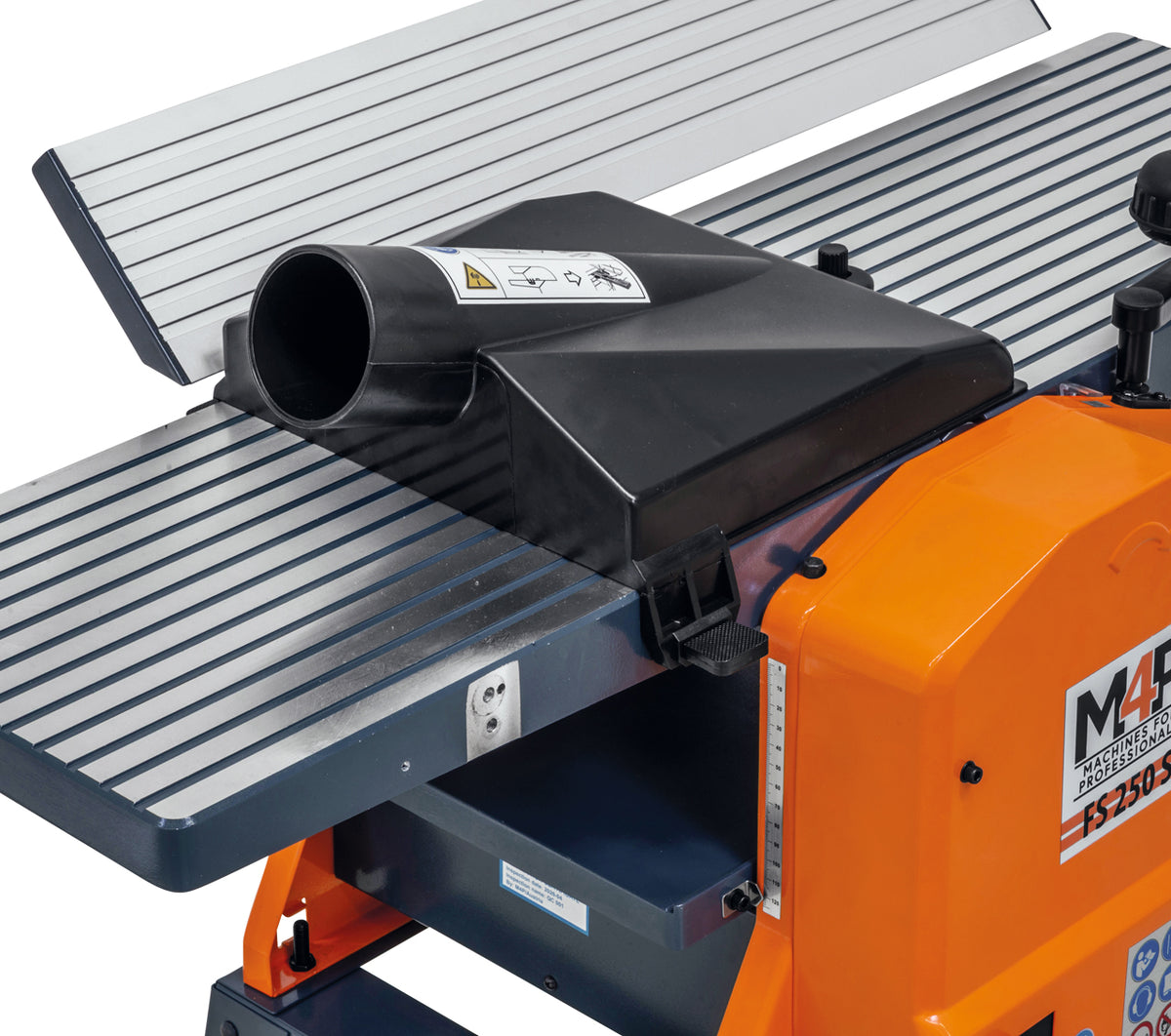

Combined dust hood, optionally usable for jointing or thicknessing

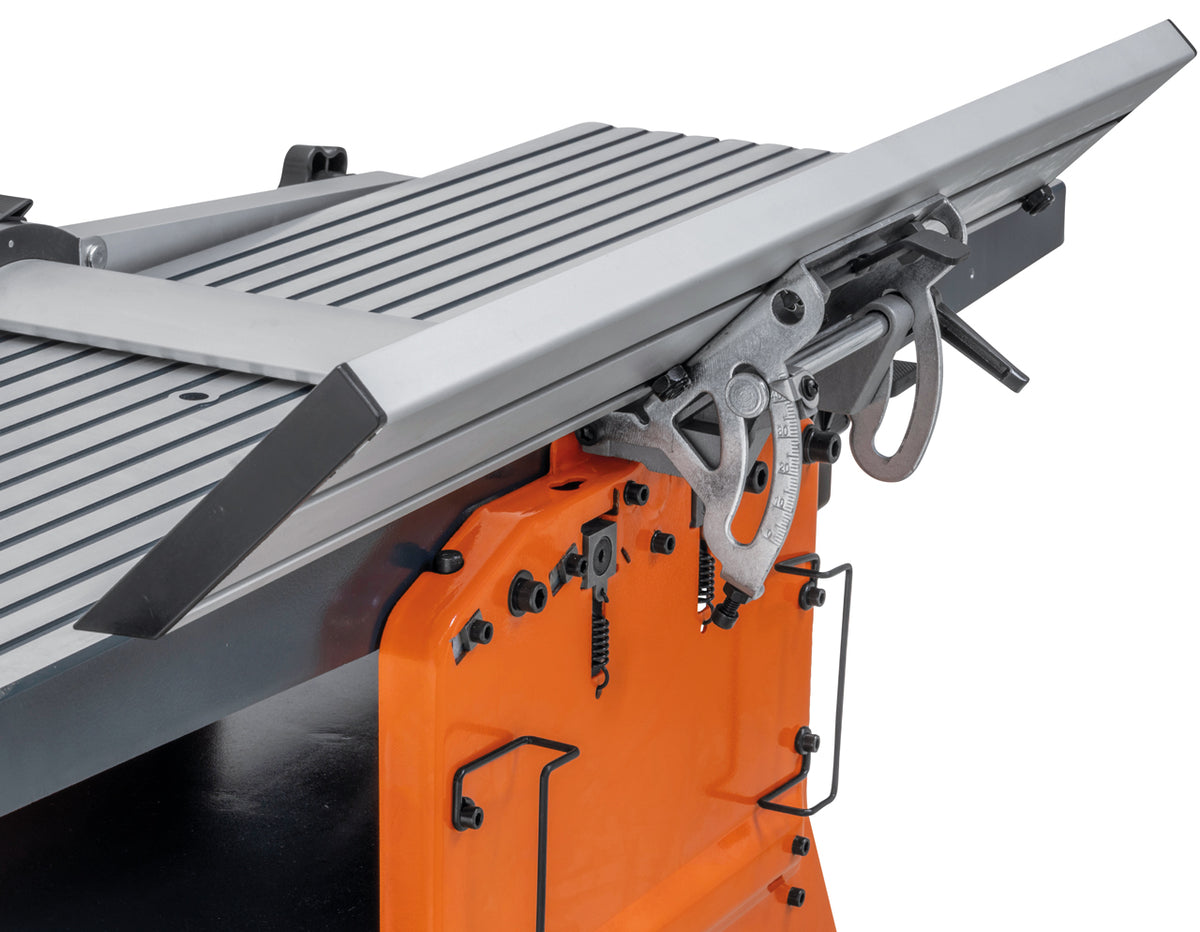

Sturdy fence, swiveling from 90° to 45°
Powerful drive motor for optimal planing results
| Surface planer | |
| Surface planing width | 255 mm |
| Table length | 925 mm |
| Cutterblock speed | 8500 rpm |
| Carbide inserts | 24 pcs. |
| Cutterblock diameter | 50 mm |
| Planing fence | 640 x 125 mm |
| Tilting planing fence | 90° to 45° |
| Max. depth of cut | 2 mm |

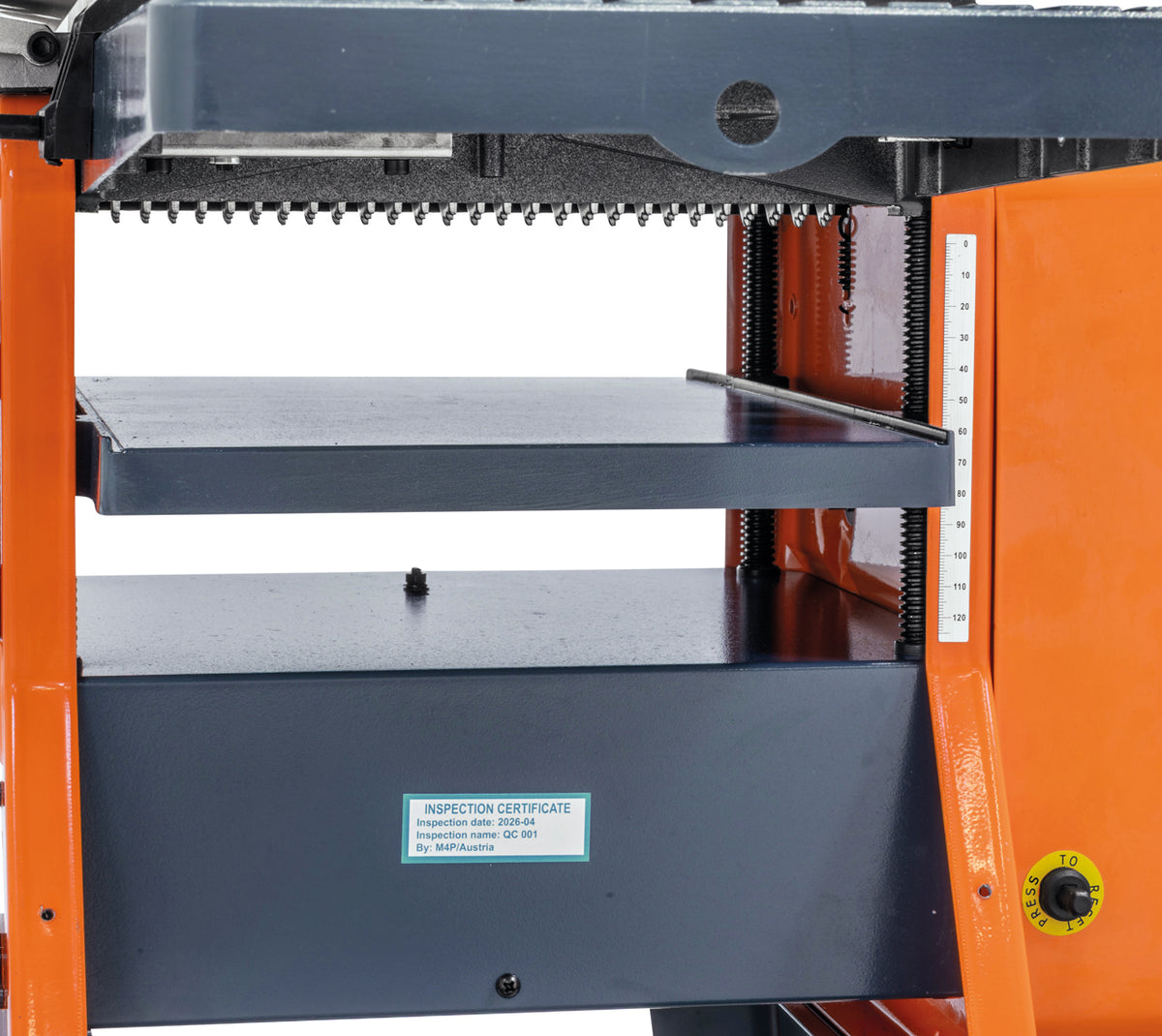

| Thickness planer | |
| Table length | 380 mm |
| Planing width | 250 mm |

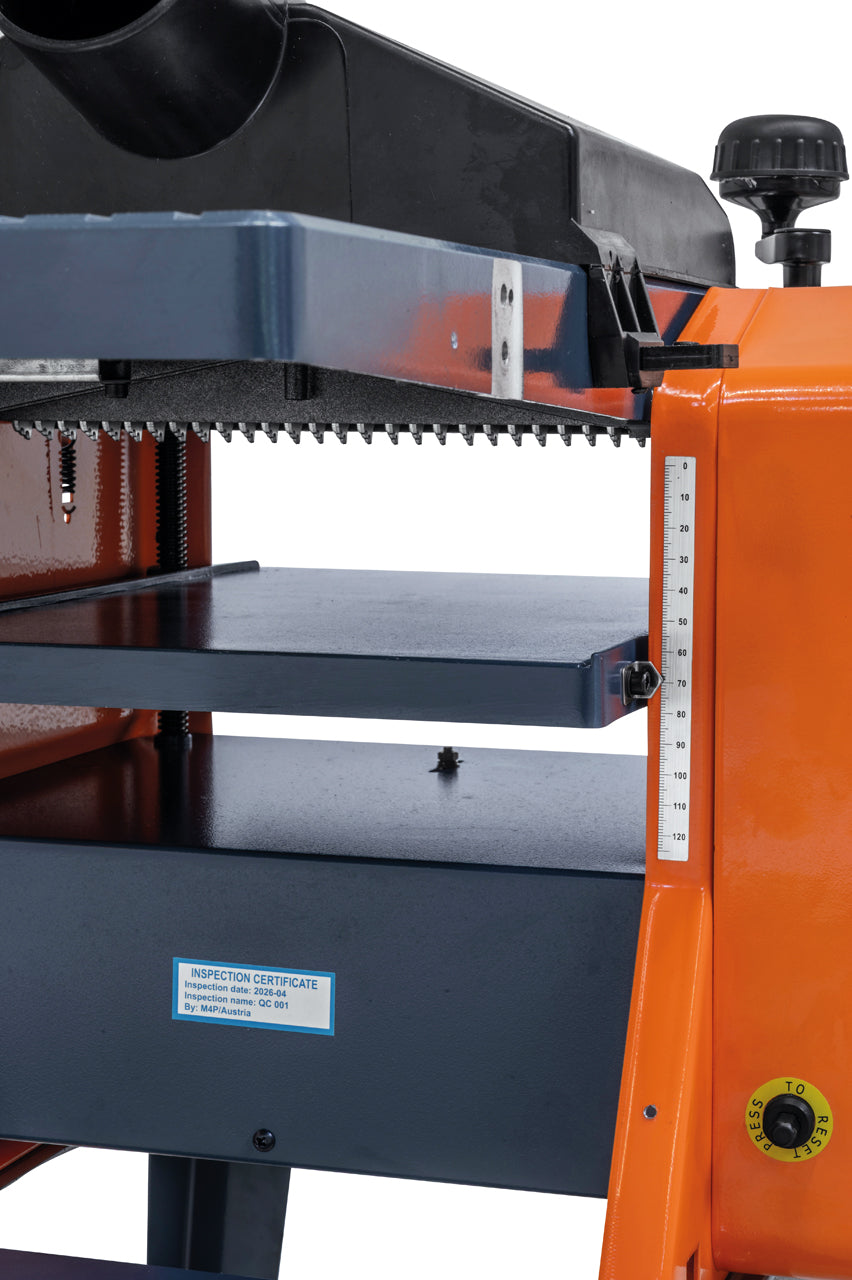

| Thicknessing height, min./max. | 5 - 120 mm |
| Max. depth of cut | 2 mm |
| Feed speed | 7 m/min |
| Dust extraction port Ø | 75 mm |
| Motor output power S1 100% | 1,5 kW (2,0 hp) |
| Motor input power S6 40% | 2,1 kW (2,8 hp) |
| Voltage | 230 V |
| Machine dimensions (L x W x H) | 970 x 460 x 990 mm |
| Weight approx. | 31 kg |
2-year warranty - Warranty conditions can be found here
