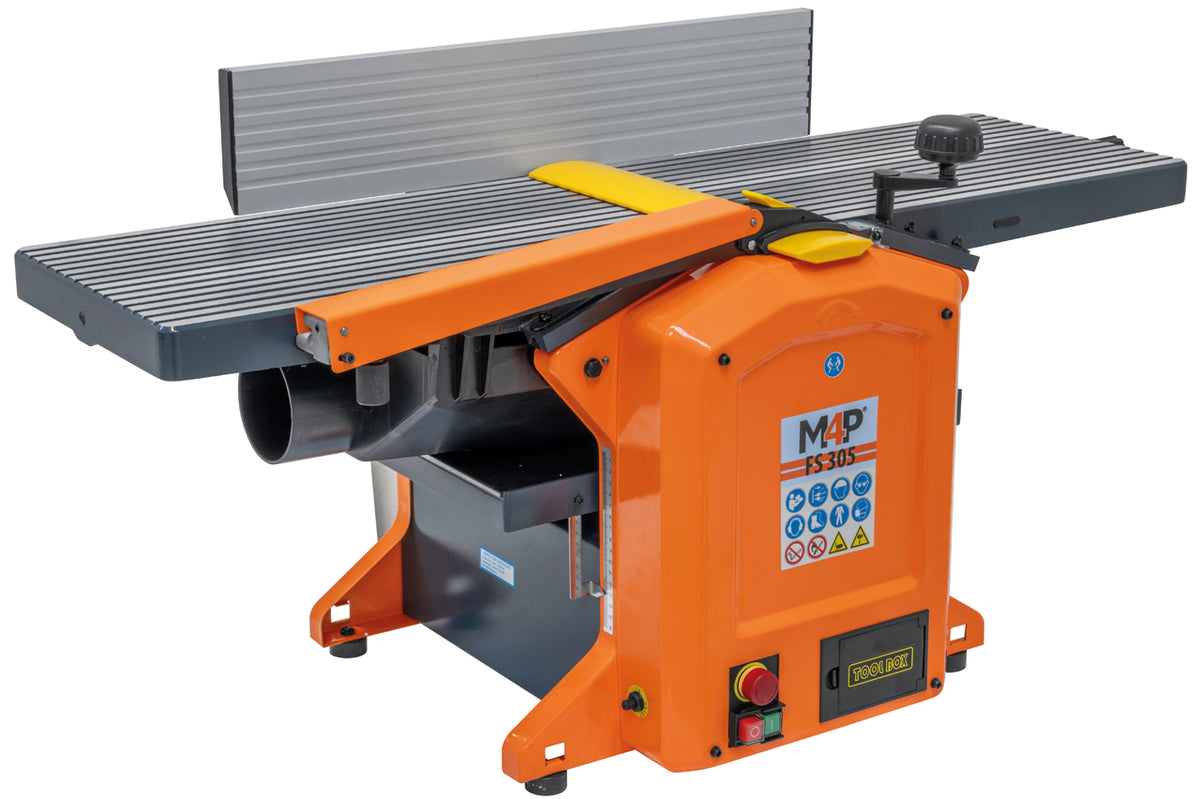

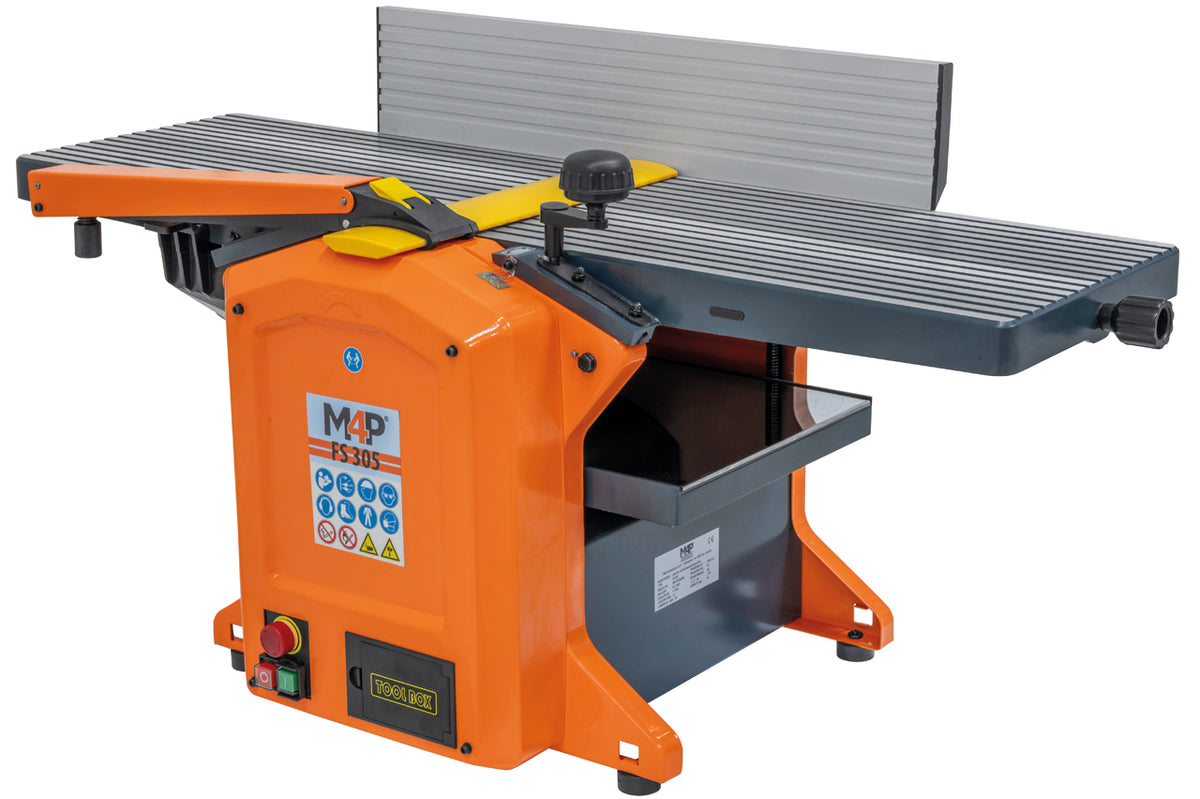

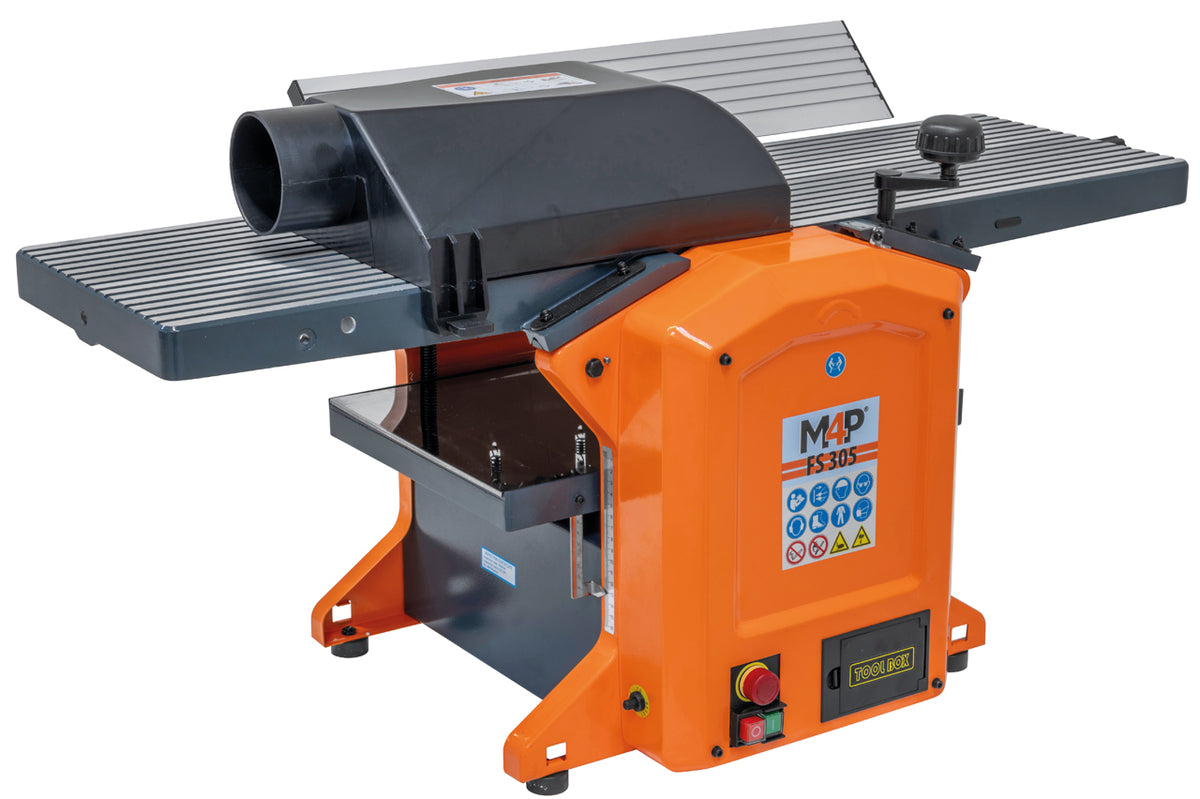

The compact jointer-planer FS 305 - with a thicknessing capacity of 150 mm - is ideal for precise planing of boards, strips and beams. Due to its small and compact design, this model is ideal for hobbyists.
Minimized noise thanks to double-sided table lips

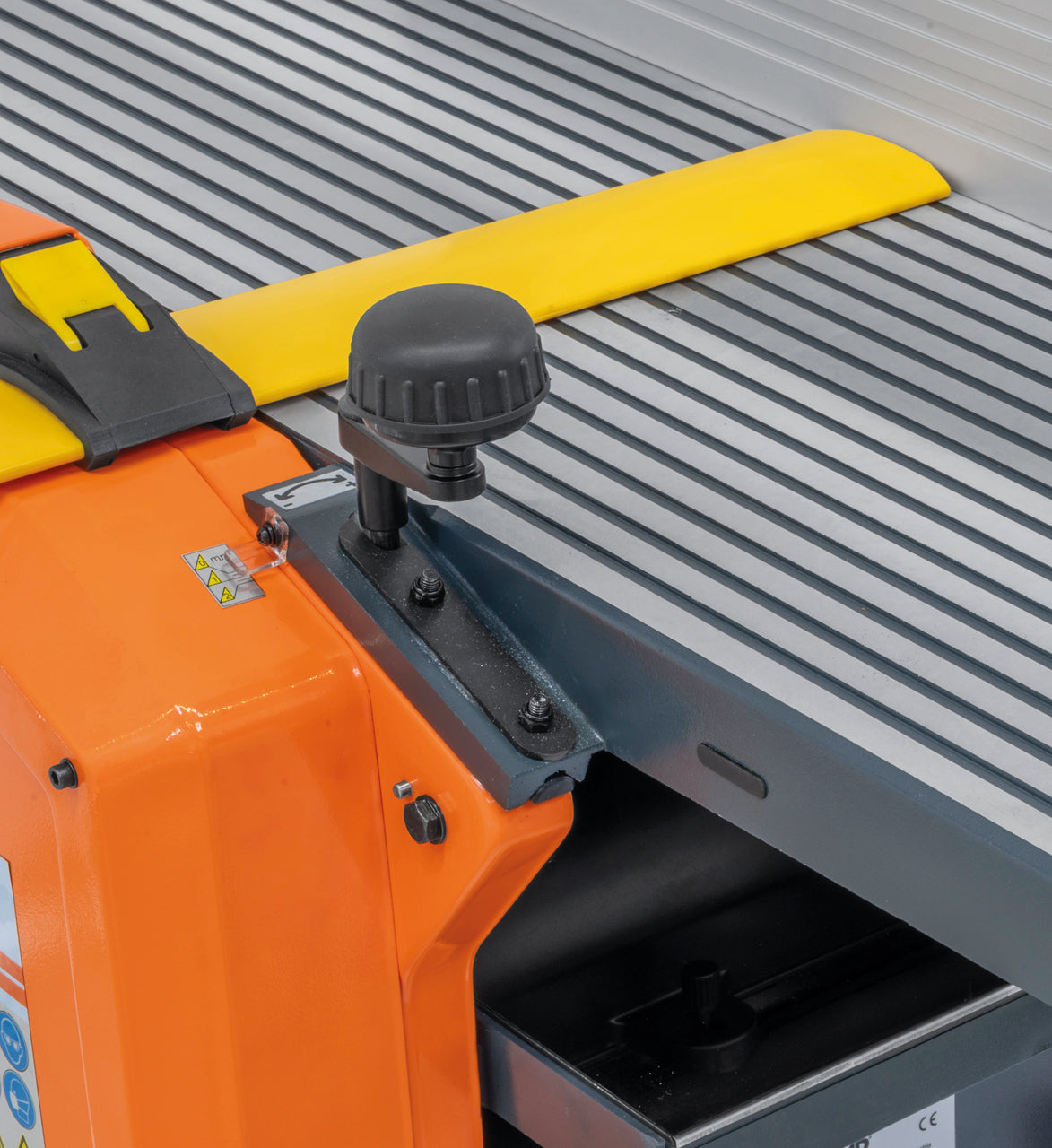

Quick and easy adjustment of the desired depth of cut

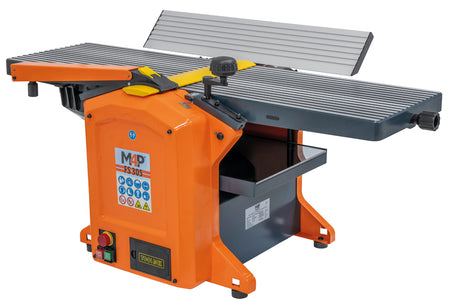

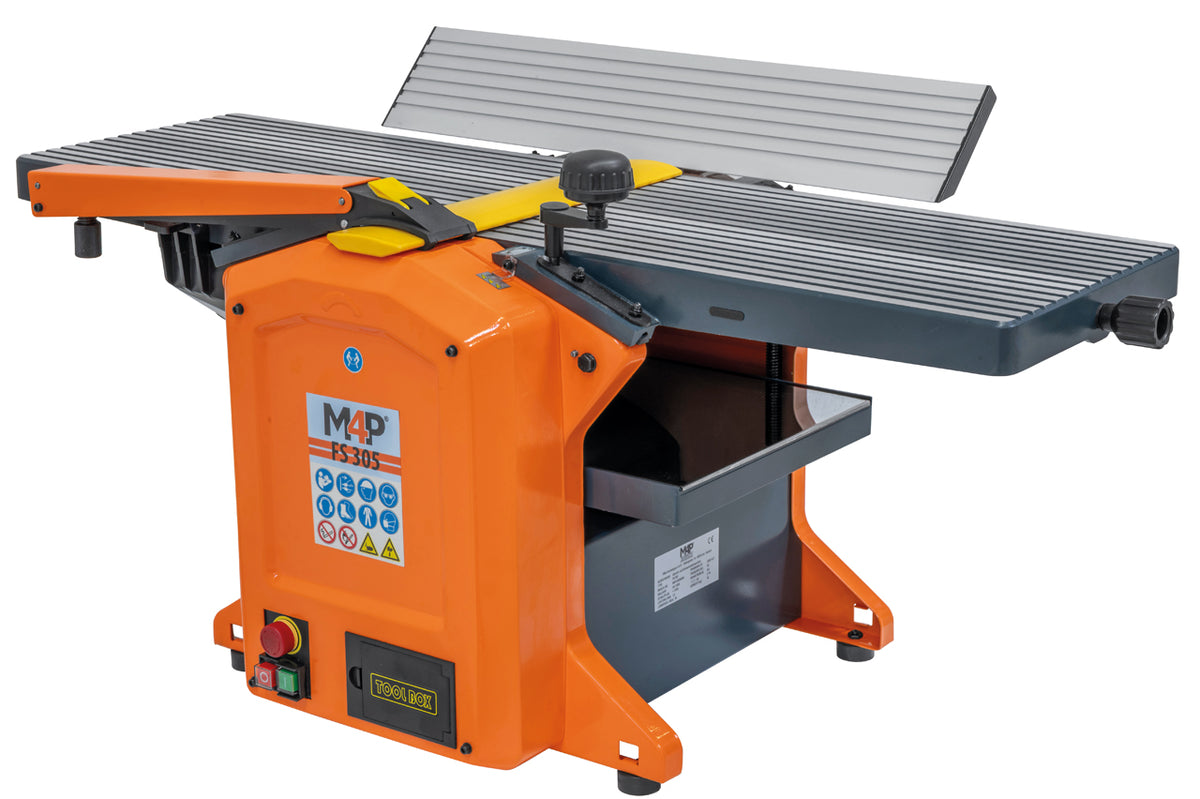

Stable fence, swiveling from 90° to 45°
Precisely planed aluminum tables for exact working results
Precision-mounted 2-knife cutter block with HSS planer knife
Cutter block guard according to CE standard offers maximum safety when working
Powerful drive motor for optimal planing results

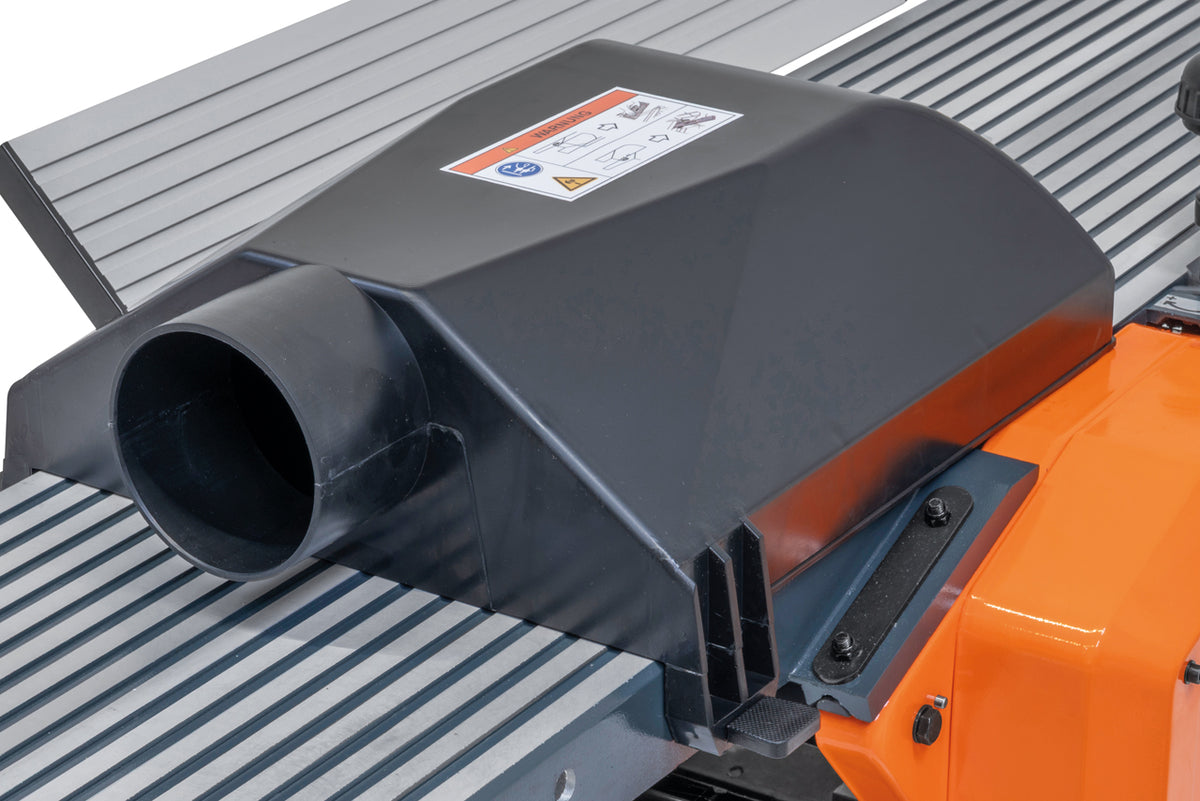

Combined dust extraction hood, optionally usable for jointing or thicknessing
Optimal for hobbyists and DIY enthusiasts

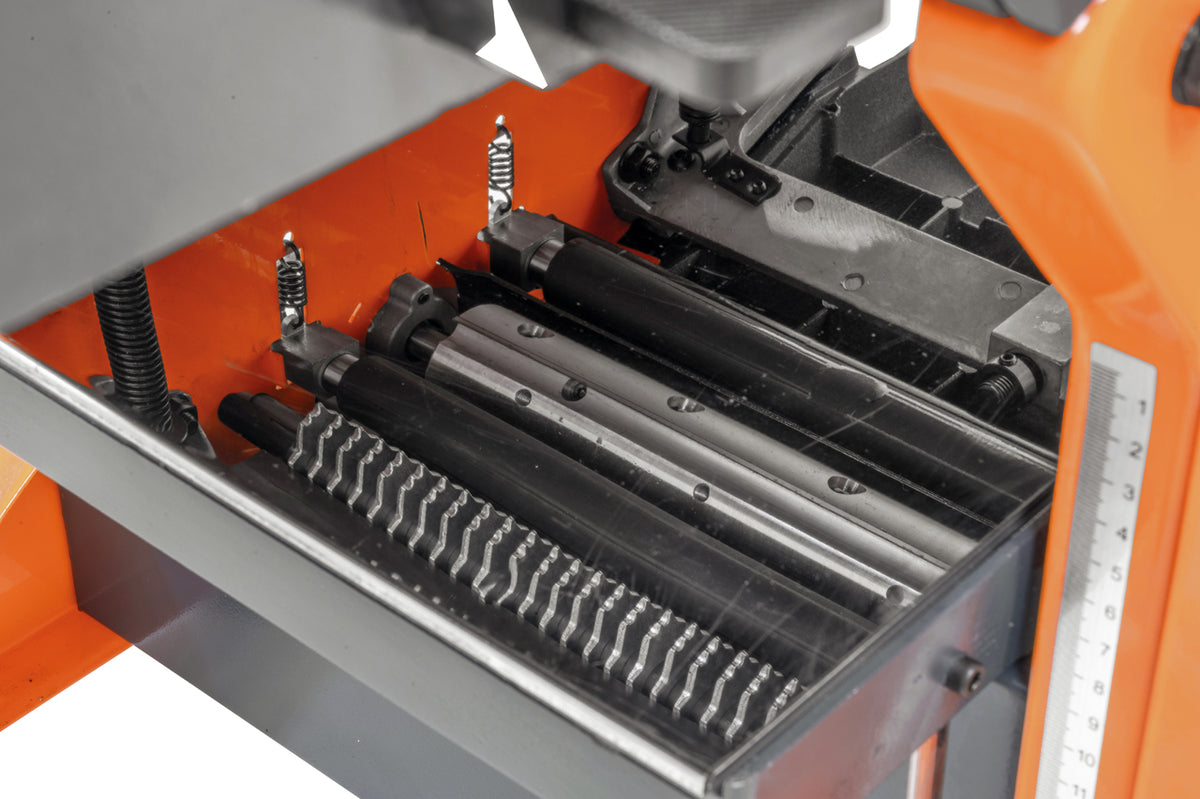

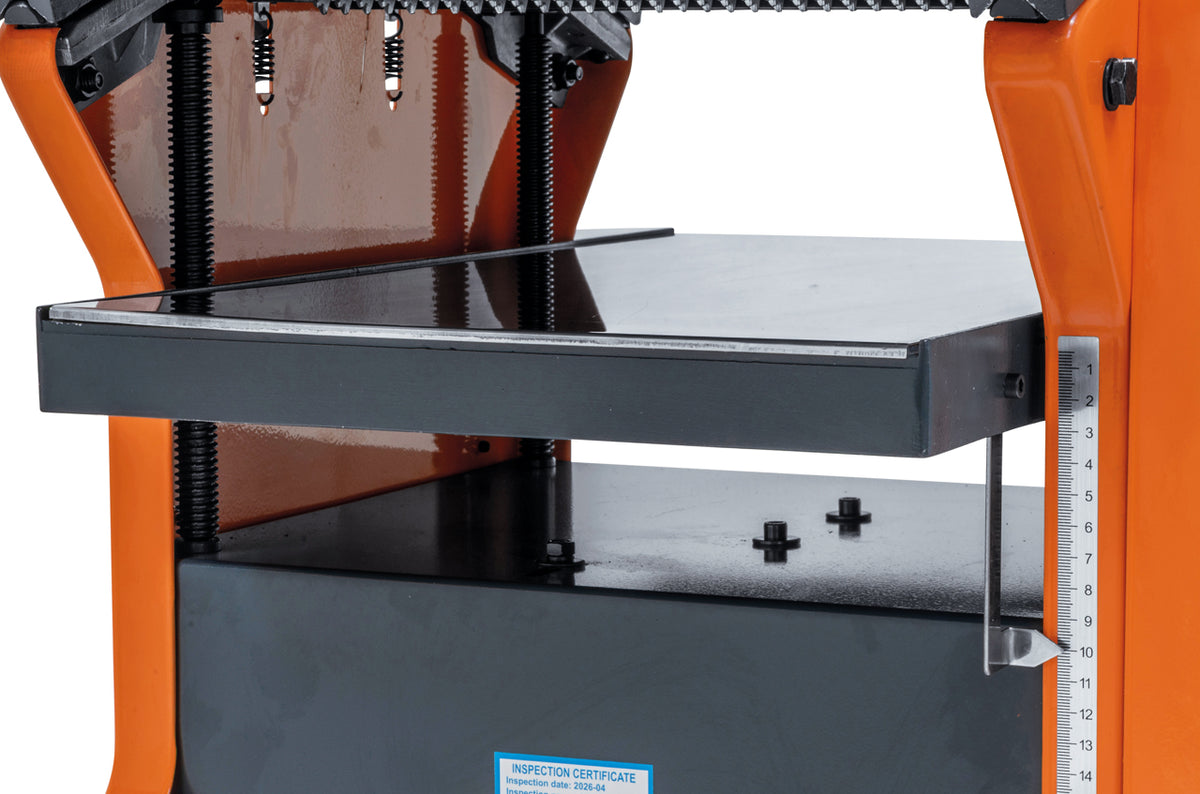

Thicknessing table with 4-fold guide for precise planing of boards, strips, planks, ...
| Surface planer | |
| Surface planing width | 305 mm |
| Table length | 1080 mm |
| Cutterblock speed | 9500 rpm |
| Planer knives | 2 pcs. |
| Cutterblock diameter | 51 mm |
| Planing fence | 640 x 125 mm |
| Tilting planing fence | 90° to 45° |
| Max. depth of cut | 2 mm |
| Thickness planer | |
| Table length | 500 mm |
| Planing width | 300 mm |
| Thicknessing height, min./max. | 5 - 150 mm |
| Max. depth of cut | 1 mm |
| Feed speed | 7 m/min |
| Dust extraction port Ø | 100 mm |
| Motor output power S1 100% | 1,8 kW (2,4 hp) |
| Motor input power S6 40% | 2,5 kW (3,4 hp) |
| Voltage | 230 V |
| Machine dimensions (L x W x H) | 1125 x 560 x 575 mm |
| Weight approx. | 40 kg |
2-year warranty - Warranty conditions can be found here
