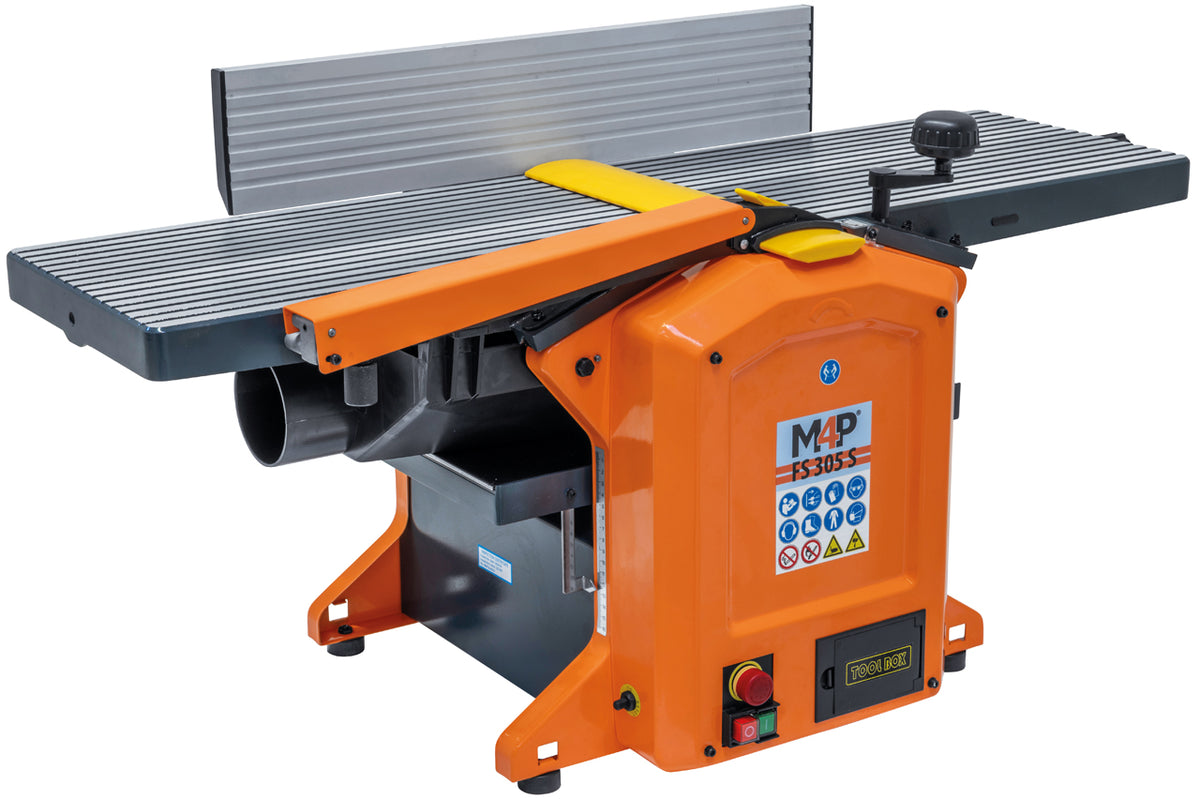

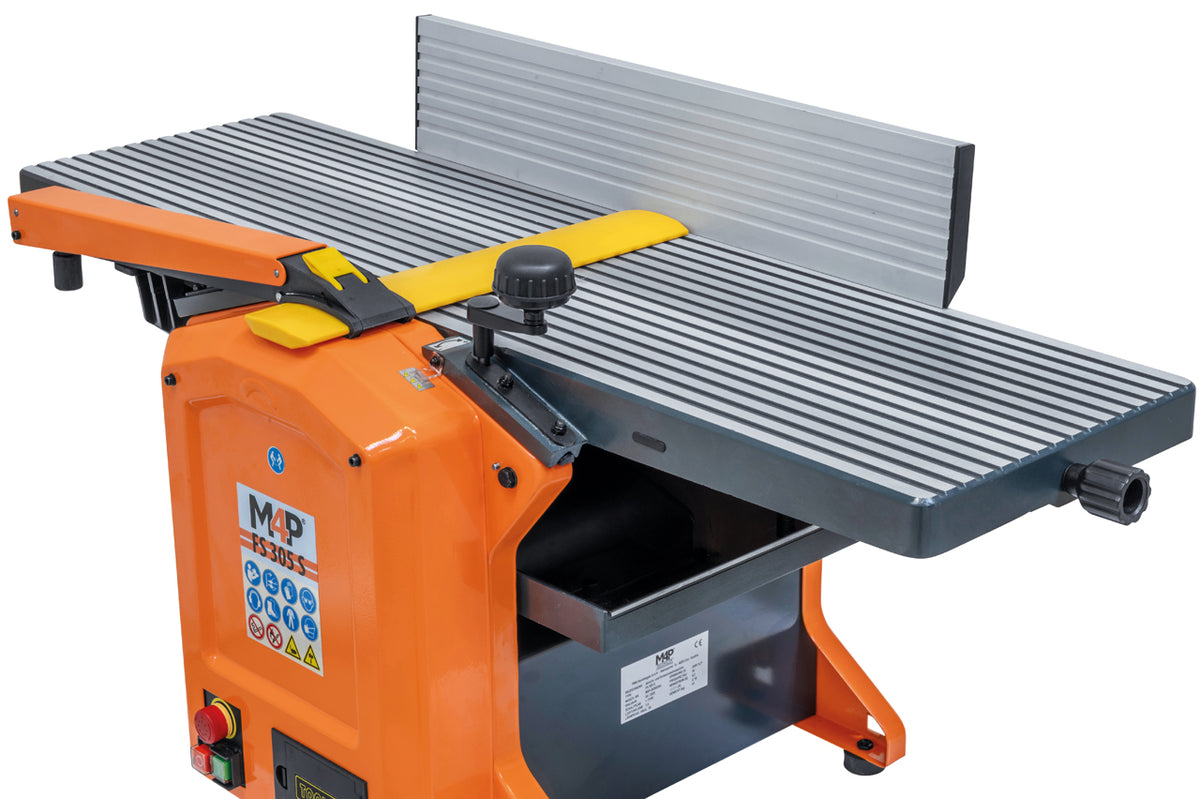

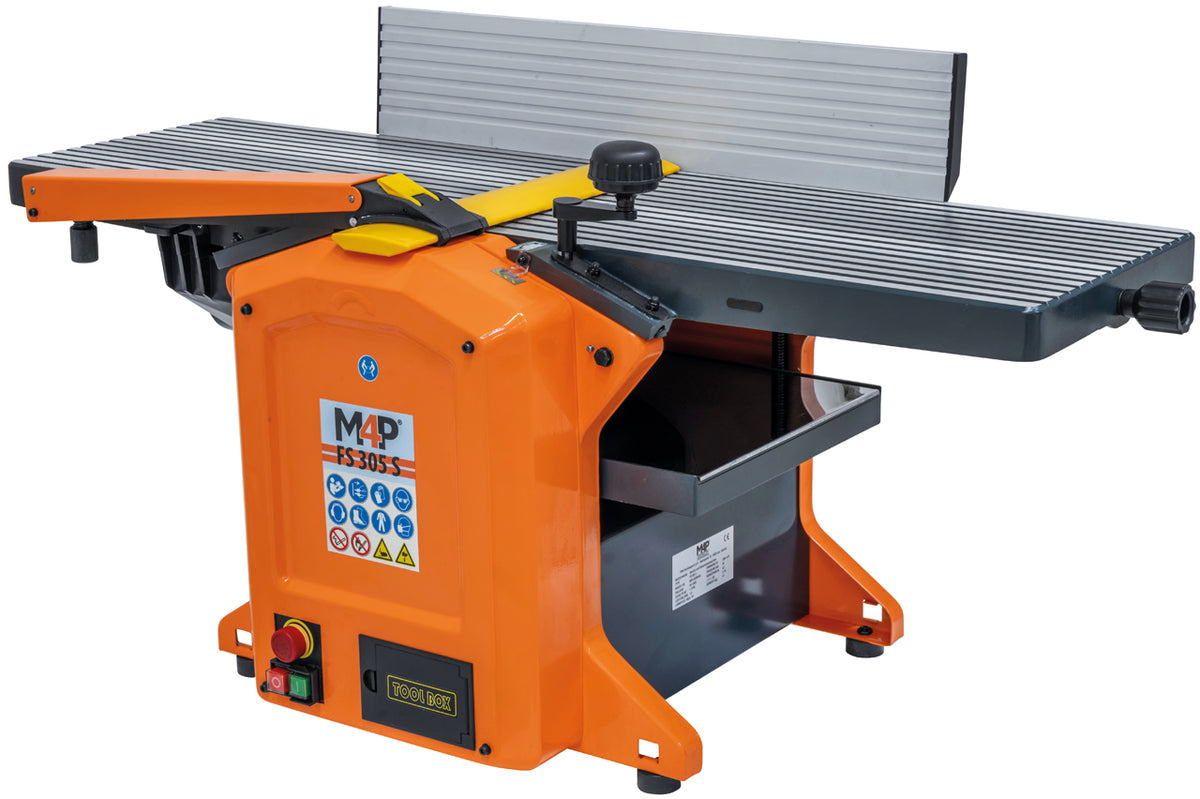

The compact planer and thicknesser FS 305 S - with a thicknessing capacity of 150 mm - is ideal for precise planing of boards, strips, and beams. The spiral cutterhead for reduced noise and optimal planing results is another plus of this machine.

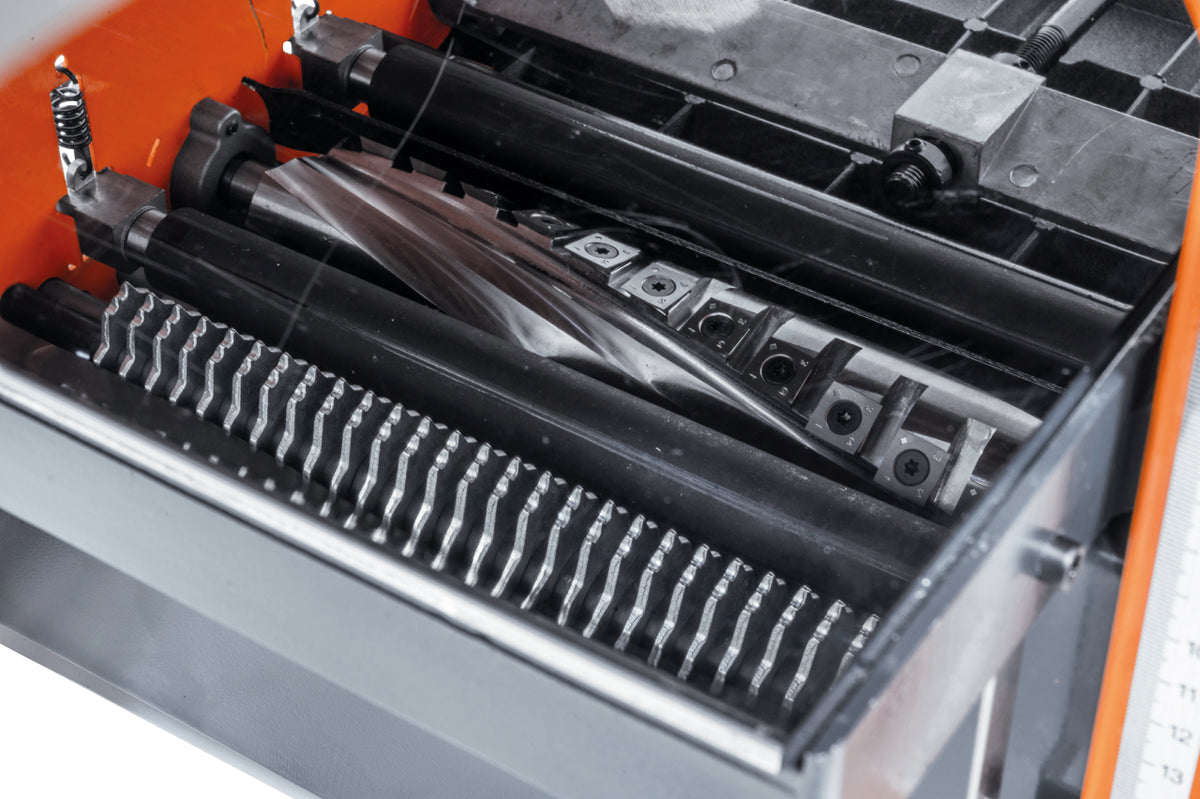

Reduced noise (approx. 50%) thanks to the standard spiral cutterhead and
up to 20 times longer tool life (achieved by four-sided carbide inserts)
Advantage of carbide inserts: In case of damage, individual knives can be replaced or rotated
The carbide cutting edges ensure tear-free planing results and optimal surfaces on any type of wood
Minimized noise due to table lips on both sides

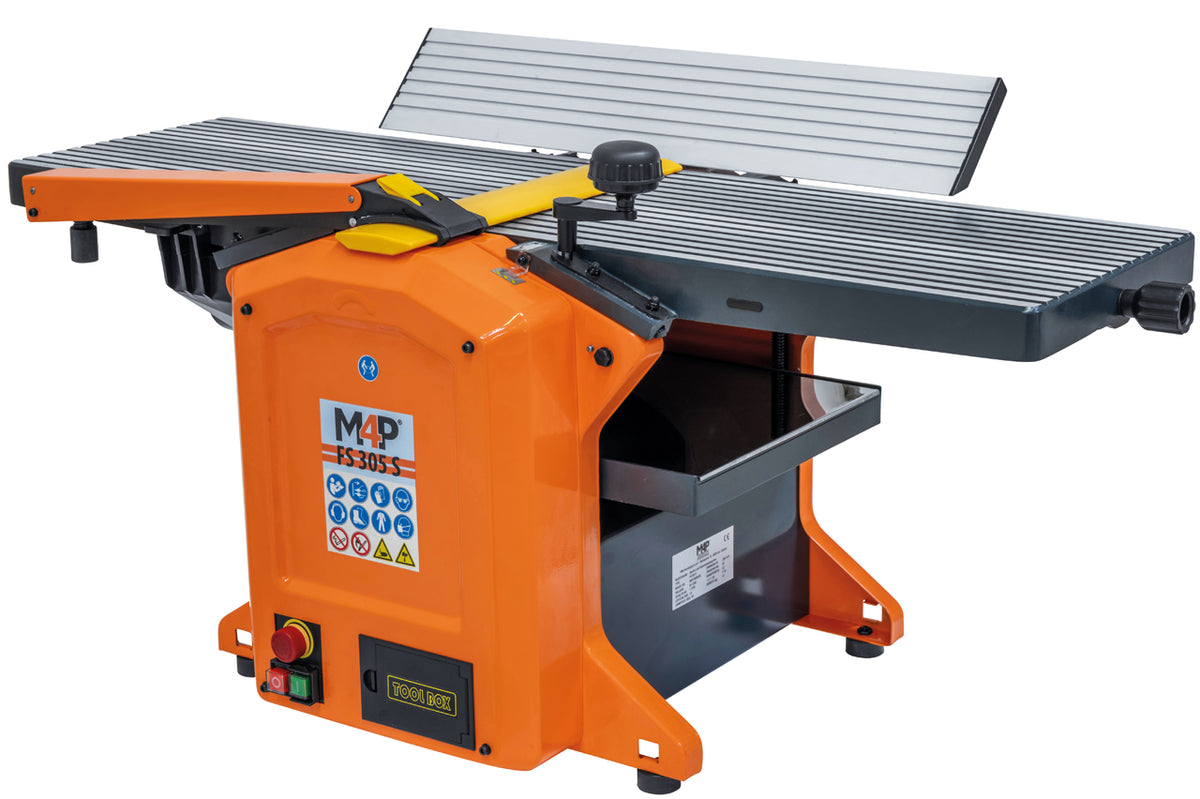

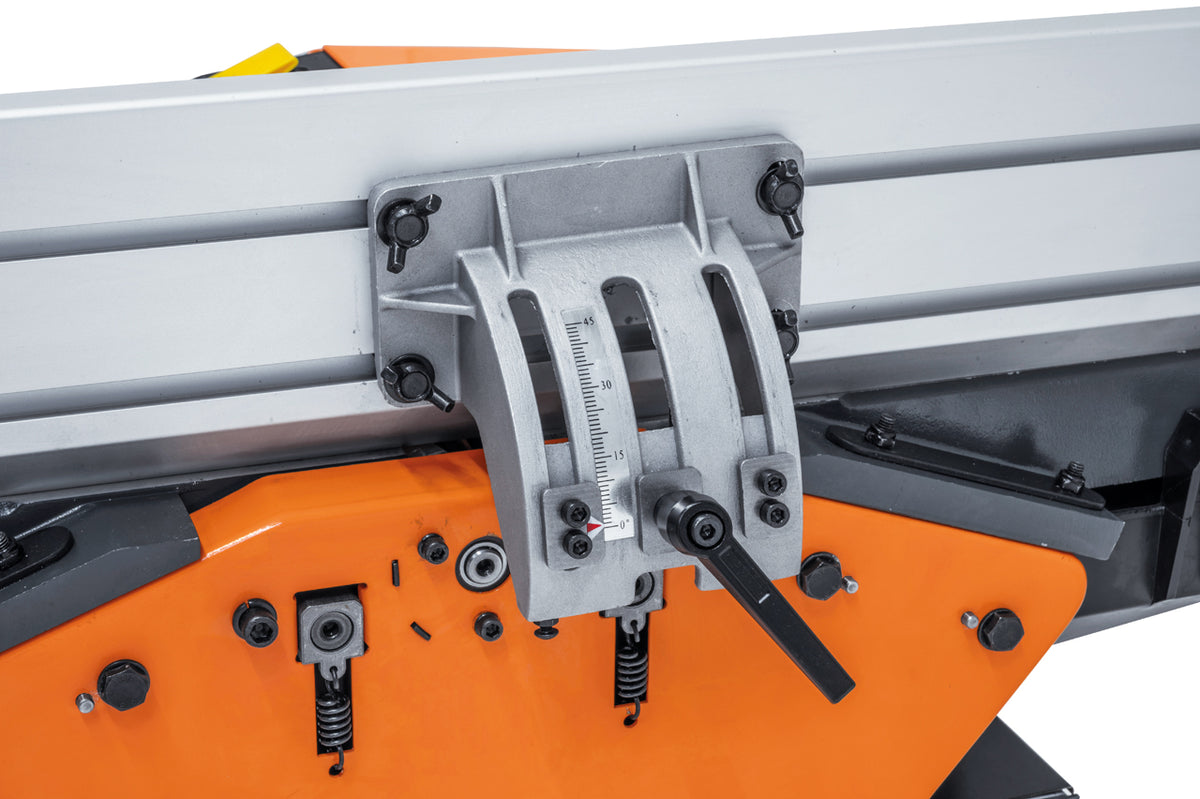

Stable fence, pivotable from 90° to 45°

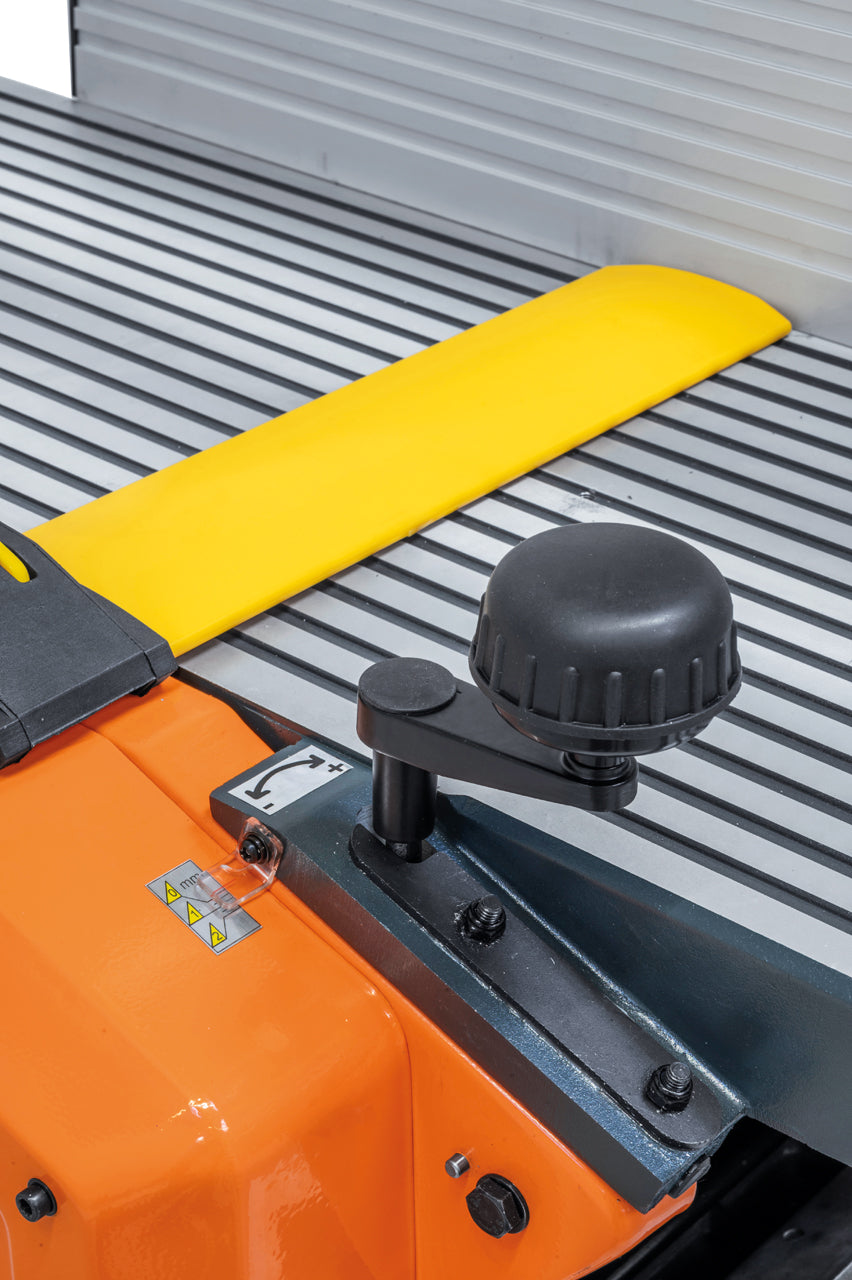

Cutter block guard according to CE standard provides maximum safety during operation
Powerful drive motor for optimal planing results

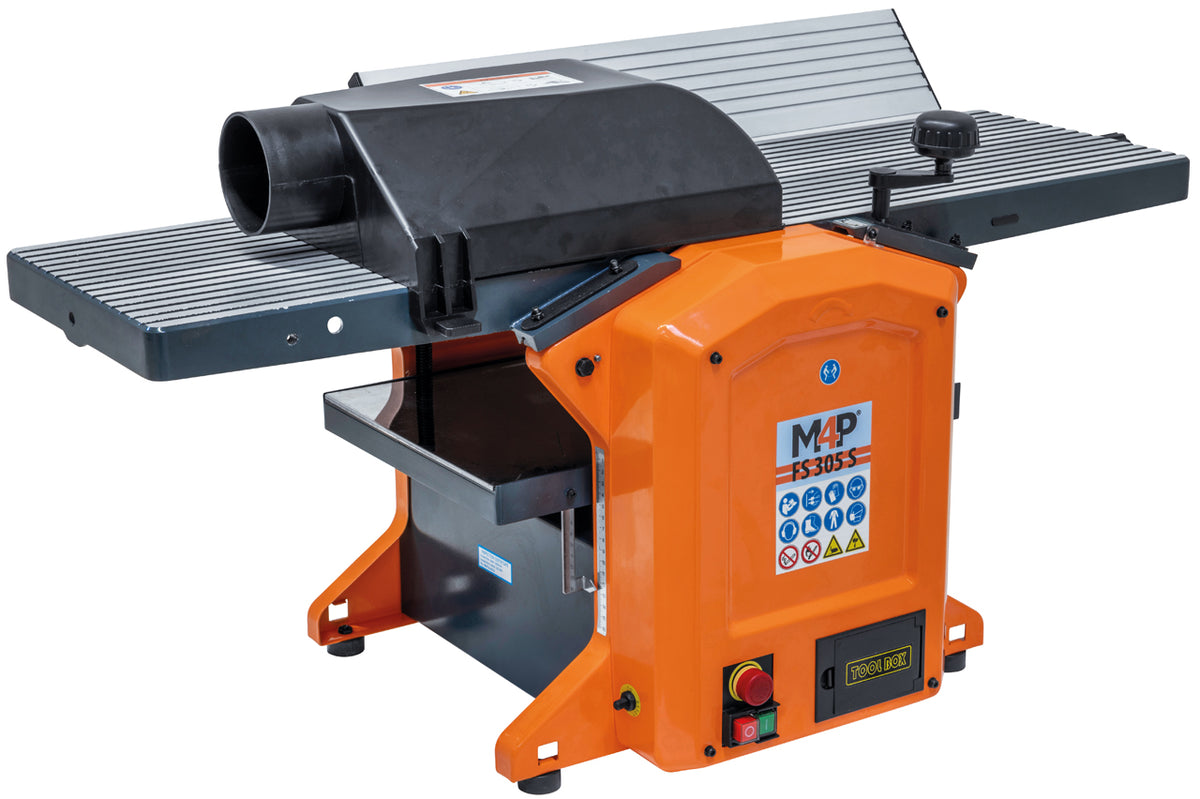

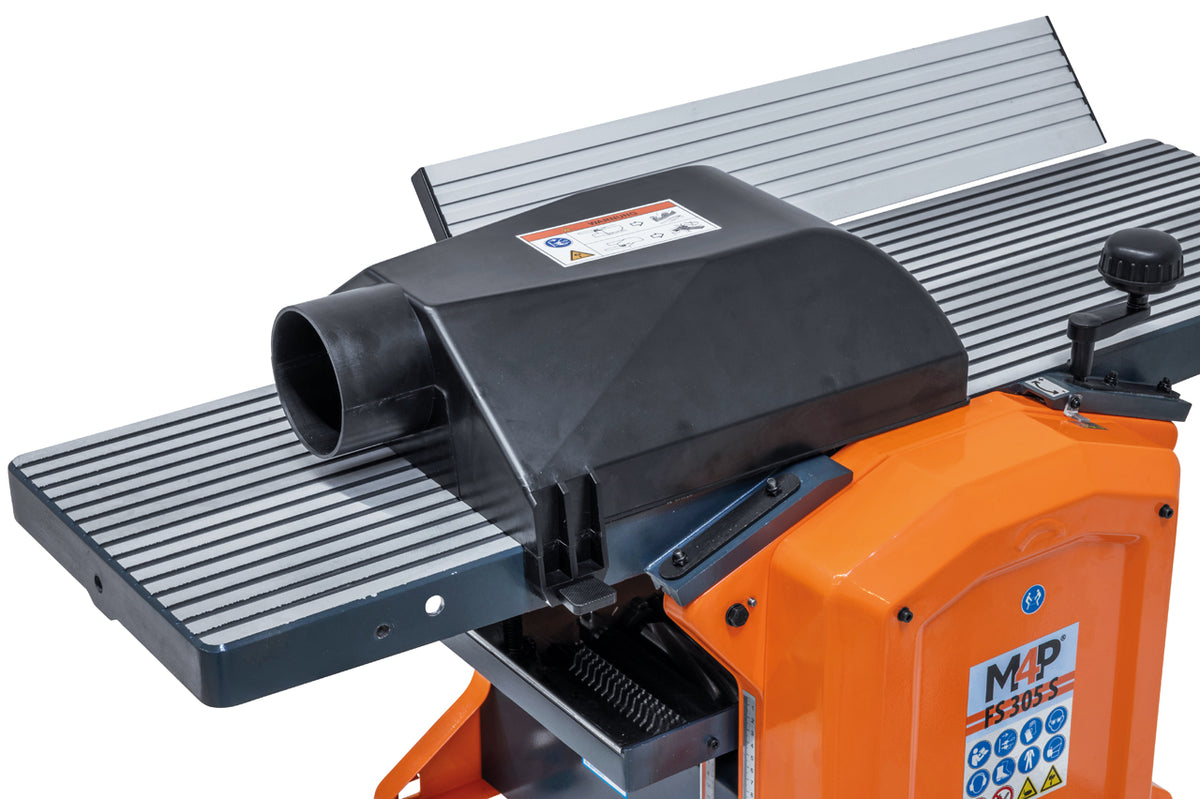

Combined dust extraction hood, optionally usable for planing or thicknessing

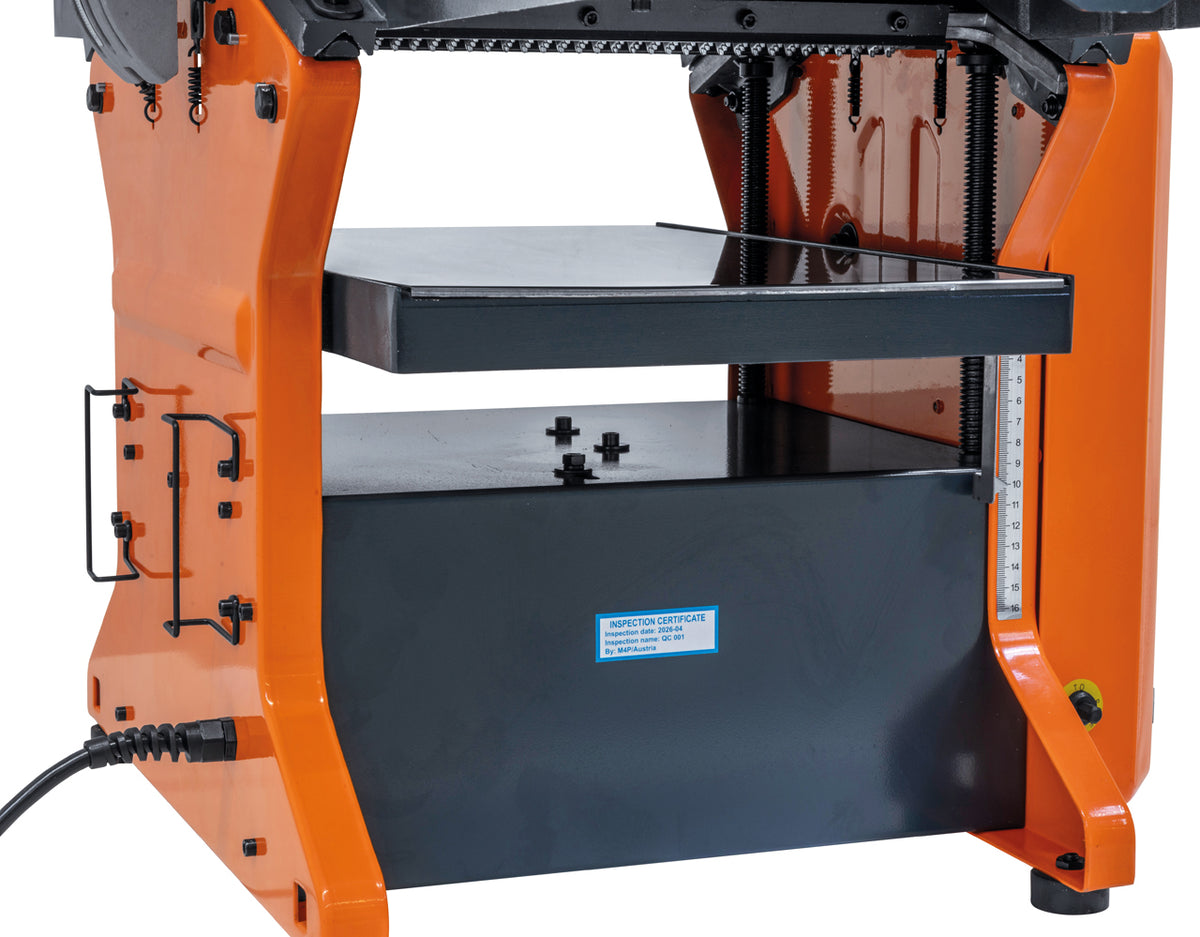

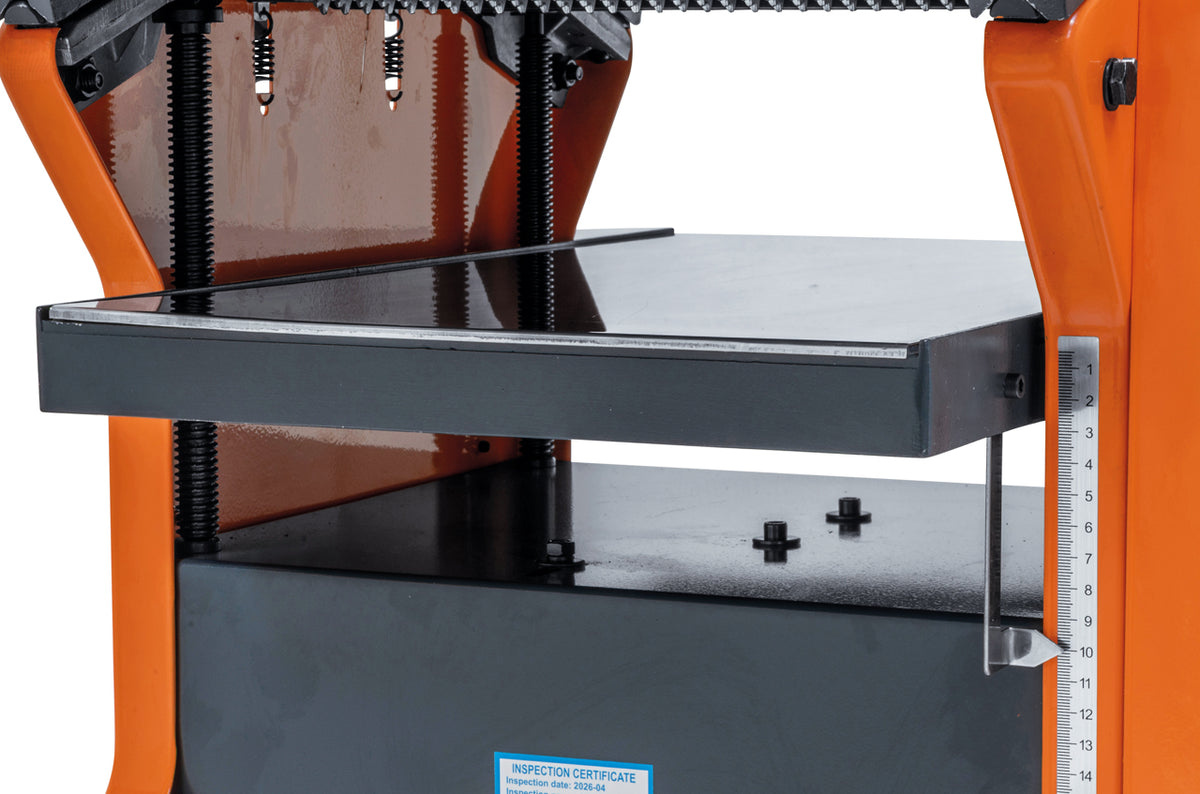

Thicknessing table with 4-point guidance for precise planing of boards, strips, planks, etc.
| Surface planer | |
| Surface planing width | 305 mm |
| Table length | 1080 mm |
| Cutterblock speed | 9500 rpm |
| Carbide inserts | 28 pcs. |
| Cutterblock diameter | 50 mm |
| Planing fence | 640 x 125 mm |
| Tilting planing fence | 90° to 45° |
| Max. depth of cut | 2 mm |
| Thickness planer | |
| Table length | 500 mm |
| Planing width | 305 mm |
| Thicknessing height, min./max. | 5 - 150 mm |
| Max. depth of cut | 2 mm |
| Feed speed | 7,5 m/min |
| Dust extraction port Ø | 100 mm |
| Motor output power S1 100% | 1,8 kW (2,4 hp) |
| Motor input power S6 40% | 2,5 kW (3,4 hp) |
| Voltage | 230 V |
| Machine dimensions (L x W x H) | 1125 x 560 x 575 mm |
| Weight approx. | 41 kg |
2-year warranty - Warranty conditions can be found here
